Architectural Layout | 2D

Basic Elevation

Structural Design

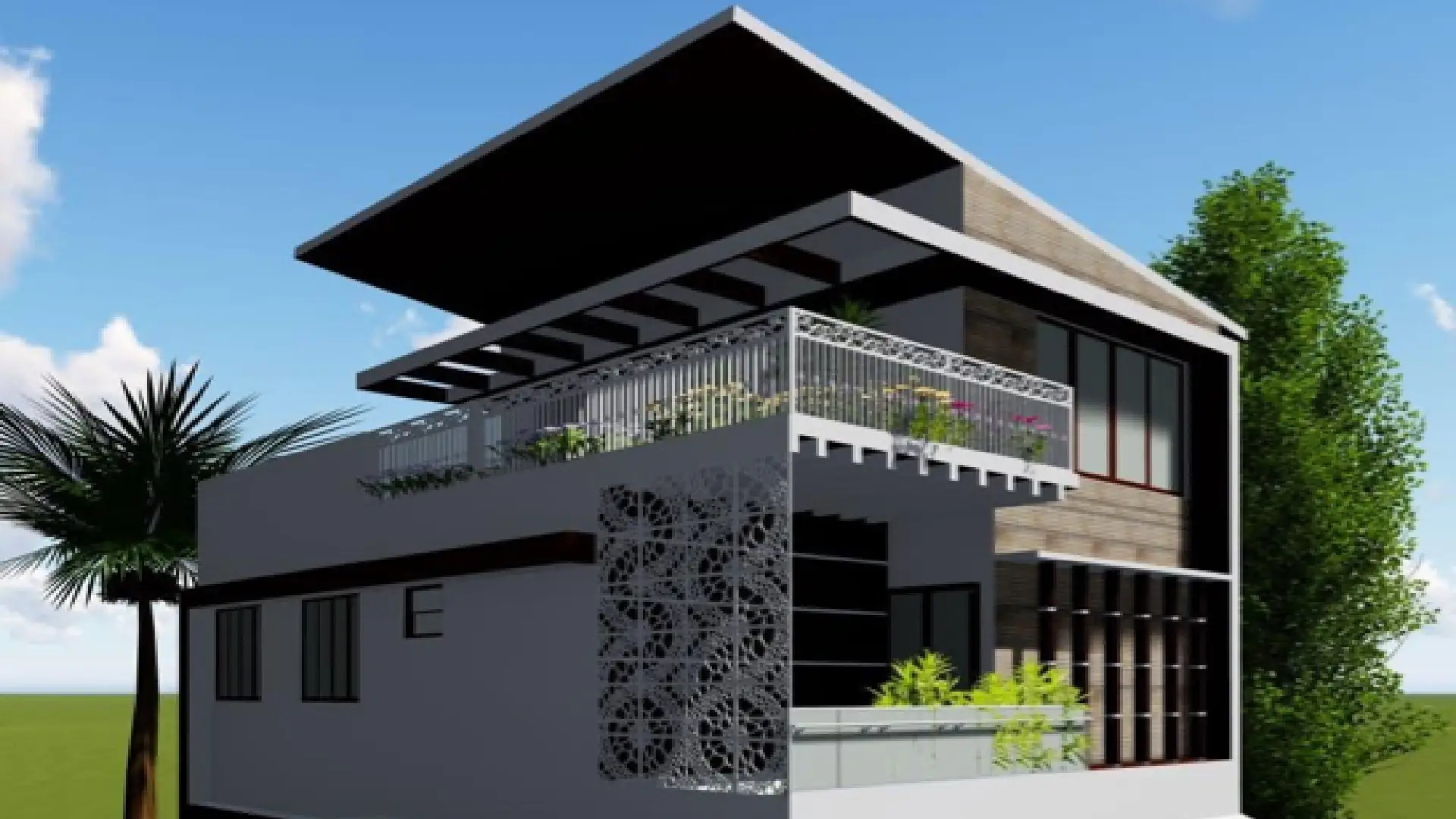

3D Elevation

Steel – Rathi or Kamadhenu or equivalent

Cement – Ambuja or Dalmia or Shree or equivalent of 43 or 53 grade

Aggregates – 20mm & 40mm

Blocks – Standard Solid Concrete blocks. 6 inch & 4 inch

RCC Design Mix – M25 or As per the structural designer recommendation

Ceiling Height – 10 feet (Finished Floor level to Finished Floor level)

Ceramic Wall Dado – Upto Rs.40 per Sqft

Main Sink Faucet – Upto Rs.1300

Any other Faucet or Accessories – ISI Marked

Kitchen Sink – Stainless Steel of Single Sink make worth Rs. 3,000

Ceramic Wall Dado upto 7′ height – Upto Rs.40 per Sqft

Sanitarywares & CP fittings upto Rs. 30,000 per 1000 Sqft of Hindware make

CPVC Pipe – Astral or Equivalent

Bathroom doors – Waterproof flush doors or WPC

Windows – Aluminium Windows with glass shutters and mesh shutters (3 track with 1 mesh) of Jindal Profiles

Main Door – Flush Door with Veneer. Sal wood frame of 5 inch by 3 inch, worth Rs.20,000 including fixtures.

Main Door – Flush Door with Veneer. Sal wood frame of 5 inch by 3 inch, worth Rs.20,000 including fixtures.

Interior Painting – JK Putty + Tractor Emulsion or equivalent

Exterior Painting – Asian Primer + Ace Exterior emulsion Paint or equivalent

Living & Dining Flooring – Tiles of value upto Rs.50 per sqft

Living & Dining Flooring – Tiles of value upto Rs.50 per sqft

Balcony and Open Areas Flooring – Anti-skid tiles of value upto Rs.40 per sqft

Balcony and Open Areas Flooring – Anti-skid tiles of value upto Rs.40 per sqft

Parking Tiles – Anti-skid tiles of value upto ₹ 40 per sqft

Wires – Fireproof wires by Finolex

Switches & Sockets – Anchor Ziva or North West or equivalent

Overhead Tank – Double Layered tank of 1000 Ltrs of Spiral make

Underground Sump – 4000 Ltrs

Staircase & Balcony Railing – MS Railing

Window Grills – Basic MS Grill with enamel Paint at Rs. 200 per Sqft

One AC Provisioning is included for every 350 sft of package built up area.
